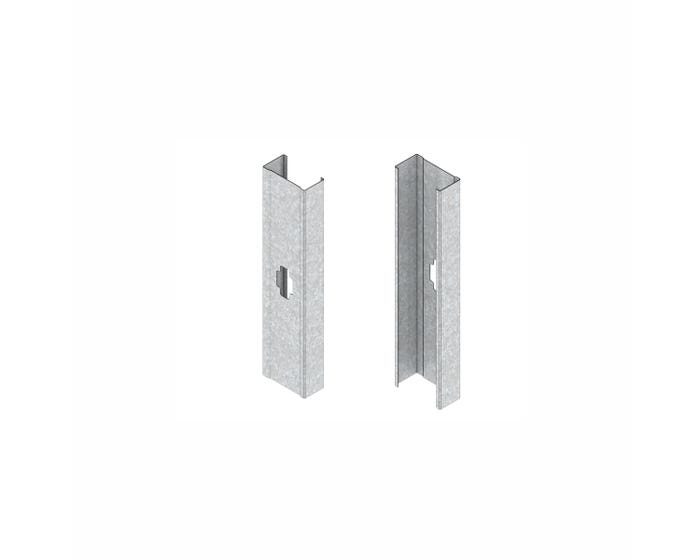

Drywall Studs C Shape

The vertical elements of a metal-framed wall are called studs. The studs are evenly spaced, to accommodate the size of the covering sheet materials.

Wall boards are held up in both interior and exterior applications by vertical C channels that are installed between the top and bottom tracks. available in both deep and normal flange stud.

When constructing a drylining stud wall, a component called a metal drywall stud is used vertically. Galvanized steel is used to create the drywall stud, which comes in a variety of diameters to fit various locations.

A partition wall that is not load-bearing can include the drywall stud. For both domestic and commercial settings, metal stud walls provide a cost-effective and adaptable solution.

As low as SAR 1.00
In stock
Only %1 left
SKU
dw-studs-main
Overview

The vertical elements of a metal-framed wall are called studs. The studs are evenly spaced, to accommodate the size of the covering sheet materials.

Wall boards are held up in both interior and exterior applications by vertical C channels that are installed between the top and bottom tracks. available in both deep and normal flange stud.

When constructing a drylining stud wall, a component called a metal drywall stud is used vertically. Galvanized steel is used to create the drywall stud, which comes in a variety of diameters to fit various locations.

A partition wall that is not load-bearing can include the drywall stud. For both domestic and commercial settings, metal stud walls provide a cost-effective and adaptable solution.

Specifications



Drywall Studs C Shape features

  • Used as vertical C channels inserted between the top and bottom tracks to hold up wall boards in both interior and exterior applications.
  • Available in regular flange stud and deep flange stud.



Drywall Studs C Shape application

Drywall studs can be non-load-bearing, such as in partition walls, which just divide spaces, or they can carry vertical structural loads when forming drywalls. They maintain the structure of a building by holding in place the windows, doors, inside finish, outside sheathing or siding, insulation, and utilities.

Documents Files
Ceiling Specification Format (CSI)
Installation Guide
Warranty
Sustainability tool
Installations

Shaftwall Installation

Product Items
Item Size Color Edges Cac Nrc Thickness
ST35125-070 36x123.2x34mm
ST35125-080 36x123.2x34mm
ST35125-090 36x123.2x34mm
ST35125-120 36x123.2x34mm
ST35125-150 36x123.2x34mm
ST35150-070 36x148.2x34mm
ST35150-080 36x148.2x34mm
ST35150-090 36x148.2x34mm
ST35150-120 36x148.2x34mm
ST35150-150 36x148.2x34mm
ST3550-070 36x48.2x34mm
ST3550-080 36x48.2x34mm
ST3550-090 36x48.2x34mm
ST3550-120 36x48.2x34mm
ST3550-150 36x48.2x34mm
ST3550-045 36x48.8x34mm
ST3550-055 36x48.8x34mm
ST3550-050 36x48.8x34mm
ST3550-060 36x48.8x34mm
ST3564-070 36x62.2x34mm
ST3564-080 36x62.2x34mm
ST3564-090 36x62.2x34mm
ST3564-120 36x62.2x34mm
ST3564-150 36x62.2x34mm
ST3564-045 36x62.8x34mm
ST3564-055 36x62.8x34mm
ST3564-050 36x62.8x34mm
ST3564-060 36x62.8x34mm
ST3572-070 36x70.2x34mm
ST3572-080 36x70.2x34mm
ST3572-090 36x70.2x34mm
ST3572-120 36x70.2x34mm
ST3572-150 36x70.2x34mm
ST3572-045 36x70.8x34mm
ST3572-055 36x70.8x34mm
ST3572-050 36x70.8x34mm
ST3572-060 36x70.8x34mm
ST3575-070 36x73.2x34mm
ST3575-080 36x73.2x34mm
ST3575-090 36x73.2x34mm
ST3575-120 36x73.2x34mm
ST3575-150 36x73.2x34mm
ST3575-045 36x73.8x34mm
ST3575-055 36x73.8x34mm
ST3575-050 36x73.8x34mm
ST3575-060 36x73.8x34mm
ST3592-070 36x90.2x34mm
ST3592-080 36x90.2x34mm
ST3592-090 36x90.2x34mm
ST3592-120 36x90.2x34mm
ST3592-150 36x90.2x34mm
ST3592-045 36x90.8x34mm
ST3592-055 36x90.8x34mm
ST3592-050 36x90.8x34mm
ST3592-060 36x90.8x34mm
ST35100-070 36x98.2x34mm
ST35100-080 36x98.2x34mm
ST35100-090 36x98.2x34mm
ST35100-120 36x98.2x34mm
ST35100-150 36x98.2x34mm
ST35100-045 36x98.8x34mm
ST35100-055 36x98.8x34mm
ST35100-050 36x98.8x34mm
ST35100-060 36x98.8x34mm
